HTMLElement

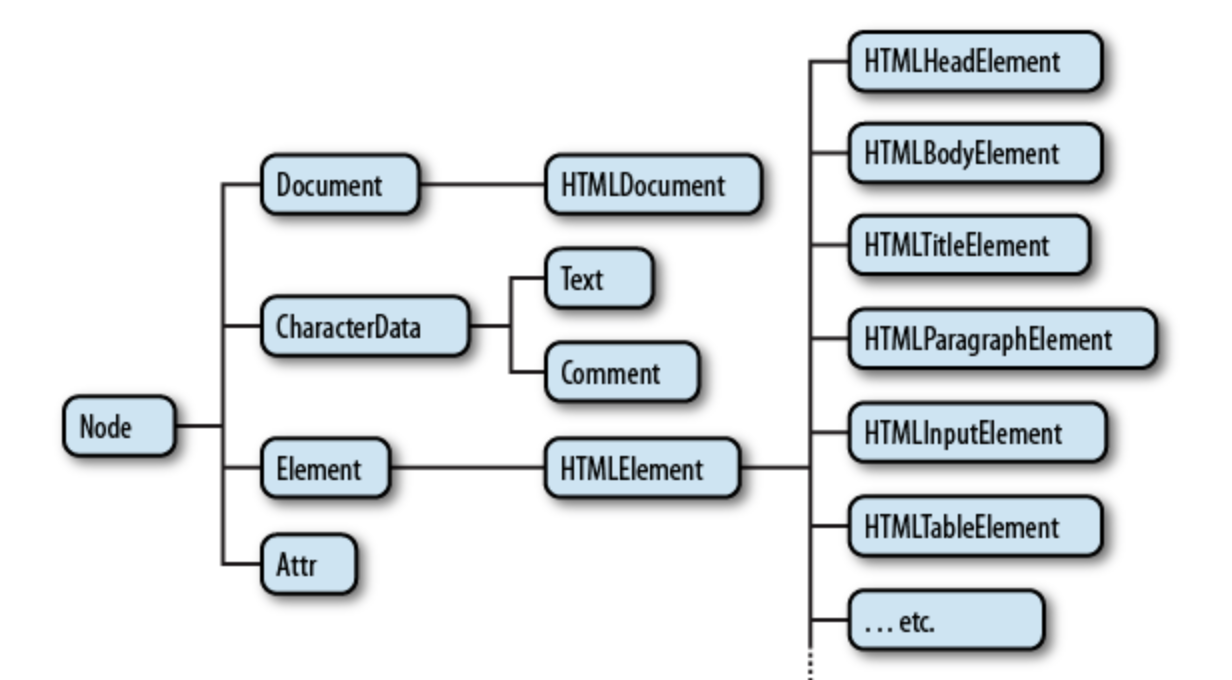

문서 객체 모델(Document Object Model, DOM)은 자바스크립트 Node 객체의 계층화된 트리이다.



HTMLElement

모든 요소들은 HTMLElement의 자식이다. HTMLElement는 Element의 자식이고, Element는 Node의 자식이다.





ex1

• document.getElementById의 반환 값: HTMLLIElement
• document.getElementsByTagName의 반환 값: HTMLCollection

<ul>
  <li>HTML</li>
  <li>CSS</li>
  <li id="JS">JavaScript</li>
</ul>
<script>
  var li = document.getElementById("JS");
  console.log(li.constructor.name);
  console.log(li);
  var lis = document.getElementsByTagName("li");
  console.log(lis.constructor.name);
  console.log(lis);
  console.log(lis["JS"]);
</script>

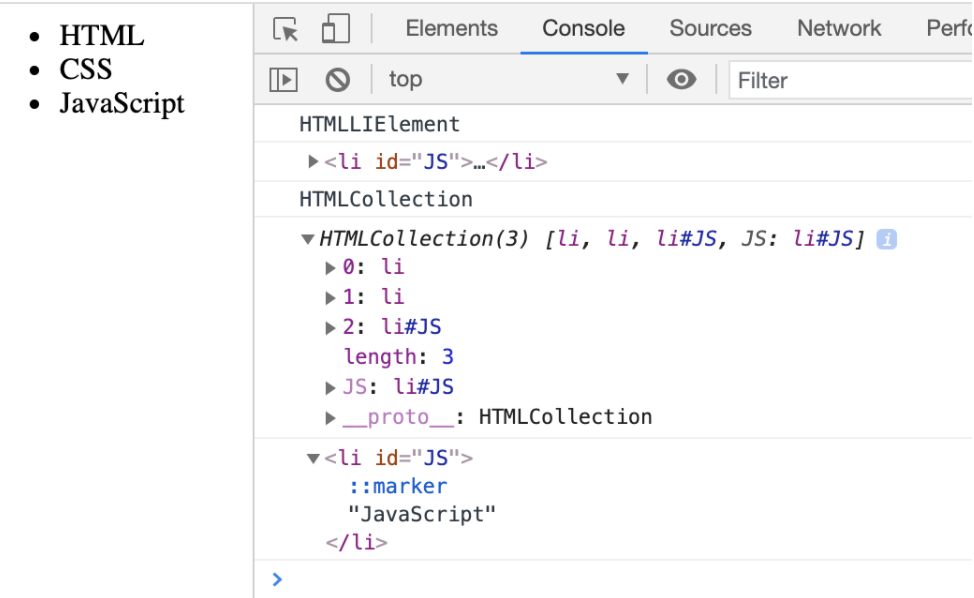

반환 값이 하나면 HTMLLIElement를 반환하고, 여러 개면 HTMLCollection을 반환한다.



ex2

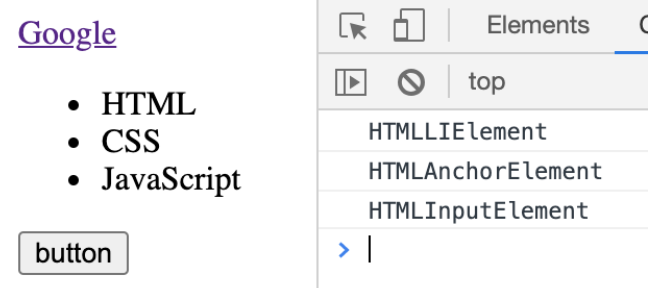

HTMLElement는 여러 가지 종류가 있다.

<a id="anchor" href="http://google.com/">Google</a>
<ul>
  <li>HTML</li>
  <li>CSS</li>
  <li id="list">JavaScript</li>
</ul>
<input type="button" id="button" value="button" />
<script>
  var target = document.getElementById("list");
  console.log(target.constructor.name);

  var target = document.getElementById("anchor");
  console.log(target.constructor.name);

  var target = document.getElementById("button");
  console.log(target.constructor.name);
</script>



• 표준 문서
  • HTMLLIElement
  • HTMLAnchorElement
  • HTMLInputElement



HTMLLIElement interface

interface HTMLLIElement : HTMLElement {
           attribute DOMString       type;
           attribute long            value;
};

HTMLAnchorElement interface

interface HTMLAnchorElement : HTMLElement {
           attribute DOMString       accessKey;
           attribute DOMString       charset;
           attribute DOMString       coords;
           attribute DOMString       href;
           attribute DOMString       hreflang;
           attribute DOMString       name;
           attribute DOMString       rel;
           attribute DOMString       rev;
           attribute DOMString       shape;
           attribute long            tabIndex;
           attribute DOMString       target;
           attribute DOMString       type;
  void               blur();
  void               focus();
};

HTMLInputElement interface

interface HTMLInputElement : HTMLElement {
           attribute DOMString       defaultValue;
           attribute boolean         defaultChecked;
  readonly attribute HTMLFormElement form;
           attribute DOMString       accept;
           attribute DOMString       accessKey;
           attribute DOMString       align;
           attribute DOMString       alt;
           attribute boolean         checked;
           attribute boolean         disabled;
           attribute long            maxLength;
           attribute DOMString       name;
           attribute boolean         readOnly;
  // Modified in DOM Level 2:
           attribute unsigned long   size;
           attribute DOMString       src;
           attribute long            tabIndex;
  // Modified in DOM Level 2:
           attribute DOMString       type;
           attribute DOMString       useMap;
           attribute DOMString       value;
  void               blur();
  void               focus();
  void               select();
  void               click();
};

`HTMLLIElement`, `HTMLAnchorElement`, `HTMLInputElement`는 모두 `HTMLElement`를 상속받고 있음을 알 수 있다.



HTMLElement interface

interface HTMLElement : Element {
           attribute DOMString       id;
           attribute DOMString       title;
           attribute DOMString       lang;
           attribute DOMString       dir;
           attribute DOMString       className;
};



즉, `HTMLElement`의 attribute는 공통적으로 갖고, 세부 특성에 따라 세분화됨을 알 수 있다.



ex3

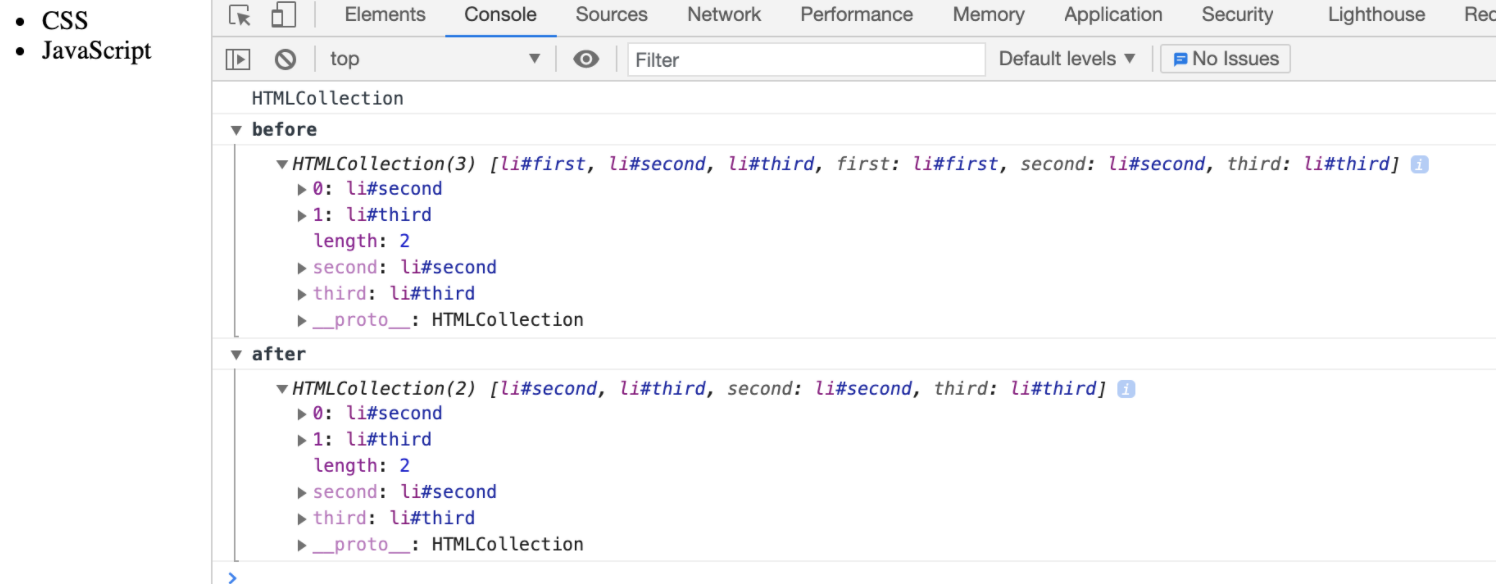

HTMLCollection은 유사 배열로 반환되며, HTMLCollection의 목록은 실시간으로 변경된다.

<ul>
  <li id="first">HTML</li>
  <li id="second">CSS</li>
  <li id="third">JavaScript</li>
</ul>
<script>
  var lis = document.getElementsByTagName("li");
  console.log(lis.constructor.name);
  console.group('before');
  console.log(lis);
  console.groupEnd();
  lis[0].remove();
  console.group('after');
  console.log(lis);
  console.groupEnd();
</script>



HTMLCollection interface

interface HTMLCollection {
  readonly attribute unsigned long   length;
  Node               item(in unsigned long index);
  Node               namedItem(in DOMString name);
};

마지막으로 HTMLDocument의 interface이다.



HTMLDocument interface

interface HTMLDocument : Document {
           attribute DOMString       title;
  readonly attribute DOMString       referrer;
  readonly attribute DOMString       domain;
  readonly attribute DOMString       URL;
           attribute HTMLElement     body;
  readonly attribute HTMLCollection  images;
  readonly attribute HTMLCollection  applets;
  readonly attribute HTMLCollection  links;
  readonly attribute HTMLCollection  forms;
  readonly attribute HTMLCollection  anchors;
           attribute DOMString       cookie;
                                        // raises(DOMException) on setting

  void               open();
  void               close();
  void               write(in DOMString text);
  void               writeln(in DOMString text);
  NodeList           getElementsByName(in DOMString elementName);
};



참고

https://github.com/hochan222/dom-element-node
